KJG-180C

Functions

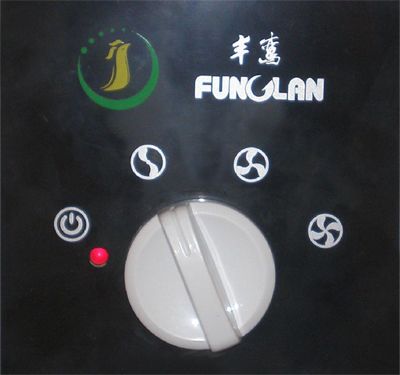

I. Control Panel

Power:
When the LED indicator is on, the machine is ready to work.

Airflow:
Switch the knob on the control panel to turn on the machine and make the airflow run at low, medium, or high speed.

Anion:
When the machine runs, the ionizer starts working as well.

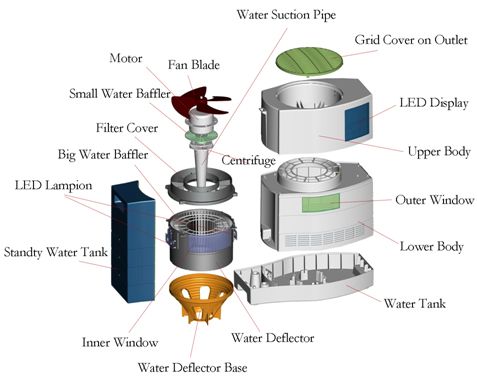

II. Exploded Drawing

III. Installation and attention

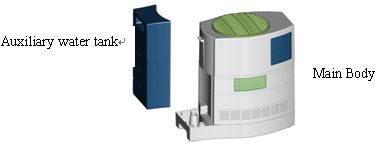

Make sure the power if off. Take out the auxiliary water tank and twist off the cap, fill water into the tank. Twist on the cap and set it in right place.

Attention: The machine should be connected with a power supply after two minutes at least since after the full water tank be placed in the right position. Otherwise, the machine can give a water alarm

Features

VI. Technical Data

Note: please subject to the actual product if the accessories are changed; the technical data is subjected to the nameplate on the machine body.

VII. Accessory
ⅰ. Main set (1 pc)
ⅱ. Operating manual (1 pc)

WARNING:
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.

Drain
Please change the water in time when it hasn’t been used for a long time or is contaminated. The steps are as below:
ⅰ Turn off the power and unplug the machine.
ⅱ Take the auxiliary water tank out.
ⅲ Screw off and disassemble the upper body from the main water tank, lean the left upper body towards right side to loosen the clips which connects these two parts. Then take out water deflector and its base.
ⅳ Empty the dirty water of the tank, and clean the tank. If
necessary, you could also add some detergent into the water for cleaning purpose.
ⅴ Replace all the cleaned parts back in the right position, then screw on the screw on the left side.
vi The machine needs cleaning every 3 months only

Applications

IV. Maintenance

The machine should be placed on a water level surface. When carrying, please hold both sides of the bottom tightly and steadily.
Make sure nothing heavy above the airflow outlet.
Make sure no obstruction blocked up any inlet of the three sides for ventilation purpose.
As the machine has humidifying function, if your room is already very moist please choose airflow at low speed state, or stop working of the machine.
Unplug the machine when it doesn’t need working.
For after-service in case of damage, please go to the appointed agent for maintenance.

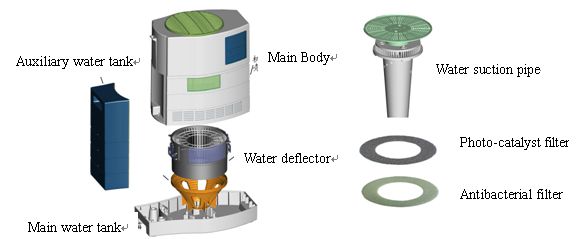

Clean or replace the filters: Take out the bodies and drain the water, take off and replace the filters. No need replacing the black humidifying sponge, as which can be cleaned by water.

V. Trouble Shooting:
